در سایزهای 10 – 20- 30- 40- MICRON و یا بصورت جمبو جهت حذف ذرات احتمالی جدا شده از شبکه انتقال آب و یا عوامل نا محلول در آب در رنجـــــــــــهای 5 MICRON لغـــــــــایت 0/2 MICRON ساخت کارخانجات معتبر اروپایی و دارای گواهی بین المللی NSF توسط این شرکت وارد می گردد.

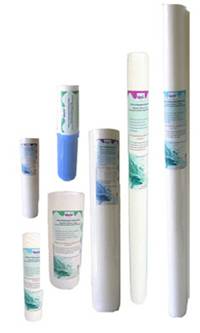

WOUND POLUPROPYLENE YARN CARTRIDGE ECONOMY
Supplying and importing various Wound Polupropylene Cartridge Economy, in order to prevent suspended particles in water or other fluids, within the size range of 10,20,30 and 40 micron, with accuracy of 0.2- 5 micron produced by well-known European factories which hold NSF international certificate.
Resin Softner |
|
| Model |
Dimensions |
Recommended Flow Rate |
Capacity (Grains as CaCo3) |
| SFC-10 |
2.5 |
0.5 gpm (1.9 l/min) |
800 |
| SFC-20 |
2.5 |
0.75 gpm (2.8 l/min) |
1800 |
| SFC-10B |
4.5 |
2.0 gpm (7.0 l/min) |
2800 |
| SFC-20B |
4.5 |
4.0 gpm (14 l/min) |
6000 |
| SFA-10 |
2.5 |
0.5 gpm (1.9 l/min) |
800 |
| SFA-20 |
2.5 |
0.75 gpm (2.8 l/min) |
1800 |
| SFA-10B |
4.5 |
2.0 gpm (7.0 l/min) |
2800 |
| SFA-20B |
4.5 |
4.0 gpm (14 l/min) |
6000 |
| SFM-10 |
2.5 |
0.5 gpm (1.9 l/min) |
800 |
| SFM-20 |
2.5 |
0.75 gpm (2.8 l/min) |
1800 |
| SFM-10B |
4.5 |
2.0 gpm (7.0 l/min) |
2800 |
| SFM-20B |
4.5 |
4.0 gpm (14 l/min) |
6000 |
|
Carbon Block |
|
| Model |
Maximum Dimensions |
Initial ∆P(psi)@ Flow Rate (gpm) |
Chlorine Taste & Odor Reduction @ Flow Rate (gpm) |
| BCC-10 |
2.5 inch ×10 inch (60mm×254mm) |
<3.7 psi @ 10 gpm ( <0.26 bar @ 37 l/min) |
>5,500 gallons @10 gpm >20,000 liters @ 37 lit |
| BCC-20 |
2.5 inch ×20 inch (60mm×508mm) |
<3.7 psi @ 20 gpm ( <0.26 bar @ 74 l/min) |
>11,00 gallons @20 gpm >40,000 liters @ 37 lit |
| BCC-10B |
4.5 inch ×10 inch (114mm×254mm) |
<4.6 psi @ 18 gpm ( <0.32 bar @ 68 l/min) |
>10,000 gallons @18 gpm >37,000 liters @ 67 lit |
| BCC-20B |
4.5 inch ×20 inch (114mm×508mm) |
<8.5 psi @ 36 gpm ( <0.59 bar @ 136 l/min) |
>20,000 gallons @36 gpm >74,000 liters @ 3.7 lit |
|
Ceramic Cartridges |
|
| Model |
Dimensions |
Micron Rating |
Initial ∆P (PSI) @ Flow rate (gpm) |
| CERF-10B |
4 inch ×10 inch (100mm×250mm) |
1 ( 3-4@99%) |
19 psi@1gpm (1.3bar@3.8lit/min) |
| CERF-10 |
2 inch ×10 inch (50mm×250mm) |
1 ( 3-4@99%) |
19 psi@1gpm (1.3bar@3.8lit/min) |
| CER-AC-10 |
2 inch ×10 inch (50mm×250mm) |
0.3 (0.3@99%) |
10 psi@0.5gpm (0.75bar@1.9lit/min) |
|

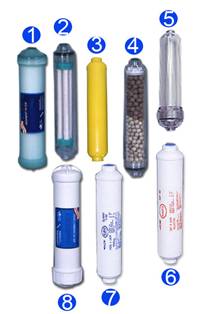

Inline Filters |
|
| Model |
Dimensions |
Micron Rating |
Initial ∆P (PSI) @ Flow rate (gpm) |
| PF-PP-10B |
2.5 inch ×10 inch (60mm×254mm) |
5 (Post poly propylene filter) |
19 psi@2gpm (1.3bar@7.6lit/min) |
| PF-IC-10 |
2 inch ×10 inch (50mm×254mm) |
10 (Post Infrared Bio ceramic filter) |
5 psi@1gpm (0.3bar@3.8lit/min) |
| PF-AA-10 |
2 inch ×10 inch (50mm×254mm) |
10 (Post Acid Alkali Filter) |
14psi@1gpm (1bar@3.8lit/min) |
| PF-TE-10 |
2 inch ×10 inch (50mm×254mm) |
10 (Three In One Far Infrared Stone Filter) |
14 psi@1gpm (1bar@3.8lit/min) |
| PF-MN-10 |
2 inch ×10 inch (50mm×254mm) |
10 (Post Mineralized Filter) |
14 psi@1gpm (1bar@3.8lit/min) |
| PF-AC-10 |
2 inch ×10 inch (50mm×254mm) |
10 (Post Activated Carbon Filter) |
19 psi@1gpm (1.3bar@3.8lit/min) |
| PF-PP-10 |
2 inch ×10 inch (50mm×254mm) |
5 (Post poly propylene filter) |
19 psi@1gpm (1.3bar@3.8lit/min) |
| PF-AC-10B |
2.5 inch ×10 inch (60mm×254mm) |
10 (Post Activated Carbon Filter) |
19 psi@2gpm (1.3bar@7.6lit/min) |
|
Poly Ester |
|
| Model |
Maximum Dimensions |
Micron Rating |
Initial ∆P(psi) @ Flow Rate (gpm) |
| CPFCA-10 |
2.5 inch ×10 inch (60mm×254mm) |
30,50 |
<1 psi @ 10 gpm ( <0.07 bar @ 37 l/min) |
| CPFCA-20 |
2.5 inch ×20 inch (60mm×508mm) |
30,50 |
<1 psi @ 20 gpm ( <0.07 bar @ 74 l/min) |
| CPFCA-10B |
4.5 inch ×10 inch (114mm×254mm) |
30,50 |
<1 psi @ 18 gpm ( <0.07 bar @ 68 l/min) |
| CPFCA-20B |
4.5 inch ×20 inch (114mm×508mm) |
30,50 |
<1 psi @ 36 gpm ( <0.07 bar @ 136 l/min) |
|
Poly Prolylene |
|
| Model |
Maximum Dimensions |
Micron Rating |
Initial ∆P(psi) @ Flow Rate (gpm) |
| PPFA-10 |
2.5 inch ×10 inch (60mm×254mm) |
0.2, 0.5, 1, 5 |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
| PPFA-20 |
2.5 inch ×20 inch (60mm×508mm) |
0.2, 0.5, 1, 5 |
<3 psi @ 20 gpm ( <0.2 bar @ 74 l/min) |
| PPFA-30 |
2.5 inch ×30 inch (60mm×762mm) |
0.2, 0.5, 1, 5 |
<3 psi @ 10 gpm ( <0.2 bar @ 111 l/min) |
| PPFA-40 |
2.5 inch ×40 inch (60mm×1016mm) |
0.2, 0.5, 1, 5 |
<3 psi @ 10 gpm ( <0.2 bar @ 148 l/min) |
| PPFABB-10 |
4.5 inch ×40 inch (114mm×254mm) |
1,5 |
<3 psi @ 18 gpm ( <0.2 bar @ 68 l/min) |
| PPFABB-20 |
4.5 inch ×40 inch (114mm×508mm) |
1,5 |
<3 psi @ 20 gpm ( <0.2 bar @ 136 l/min) |
| PPAC5-10 |
2.5 inch ×10 inch (60mm×254mm) |
5 |
<5 psi @ 10 gpm ( <0.35 bar @ 37 l/min) |
|
Special Activated Carbon |
|
| Model |
Dimensions |
Initial ∆P (PSI) @ Flow rate (gpm) |
Description |
| KDFAC-10 |
2.5 inch ×10 inch (60mm×254mm) |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
KDF Activated Carbon |
| RAC- 10 |
2.5 inch ×10 inch (60mm×254mm) |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
Resin With Activated Carbon Bed |
| CAC-10 |
2.5 inch ×10 inch (60mm×254mm) |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
Coconut shell Carbon |
| UFG-10 |
2.5 inch ×10 inch (60mm×254mm) |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
UDF Fill Grain Filter |
| SGAC-10 |
2.5 inch ×10 inch (60mm×254mm) |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
Silver impregnated Activated Carbon |
| GAC-10 |
2.5 inch ×10 inch (60mm×254mm) |
<3 psi @ 10 gpm ( <0.2 bar @ 37 l/min) |
Granular Activated Carbon |
|
Wound Polypropylene |
|
| Model |
Maximum Dimensions |
Micron Rating |
Initial ∆P(psi) @ Flow Rate (gpm) |
| CPFCA-10 |
2.5 inch ×10 inch (60mm×254mm) |
30,50 |
<2 psi @ 10 gpm ( <0.15 bar @ 37 l/min) |
| CPFCA-20 |
2.5 inch ×20 inch (60mm×508mm) |
30,50 |
<2 psi @ 20 gpm ( <0.15 bar @ 74 l/min) |
| CPFCA-10B |
4.5 inch ×10 inch (114mm×254mm) |
30,50 |
<2 psi @ 10 gpm ( <0.15 bar @ 111 l/min) |
| CPFCA-20B |
4.5 inch ×20 inch (114mm×508mm) |
30,50 |
<2 psi @ 10 gpm ( <0.15 bar @ 148 l/min) |
|
